設計與制造 DesignandManufacture |
結構長度 FaceToFace |
法蘭尺寸 FlangeDimension |
壓力-溫度 PressureTemperatureLating |
試驗-檢驗 InspectionAndTest |
GB122237 | GB12221 | GB9113JB79 | GB9131 | GB/T13927JB/T9092 |
公稱壓力NominalPressure | 1.6 | 2.5 | 4.0 |
強度試驗 ShellTest |
2.4 | 3.8 | 6.0 |
水密封試驗 WaterSealTest |
1.8 | 2.8 | 4.4 |
氣密封試驗 AirSealTest |
0.4-0.7 |
閥體 Body |
WCB | ZG1Cr18Ni9Ti | CF8 | CF3 | ZG1Cr18Ni12Mo2Ti | CF8M | CF3M |
球體閥桿 BallStem |
2Cr13 | 1Cr18Ni9Ti | 304 | 304L | 1Cr18Ni12Mo2Ti | 316 | 316L |
閥座 Seat |
聚四氟乙烯PTFE加坡纖增強聚四氟乙烯PTFE+Glass對位聚笨PPL | ||||||
墊片 Shim |
聚四氟乙烯PTFE不銹鋼/柔性石墨StainlessSteel/flexibleGraphite齒形墊片ToothProfileGasket | ||||||
閥桿座 StemSeat |
聚四氟乙烯PTFE不銹鋼/柔性石墨StainlessSteel/FlexibleGraphite | ||||||
填料 Packing |
聚四氟乙烯PTFE增強柔性石墨EnhancedFlexibleGraphite | ||||||
填料壓蓋 Gland |
WCB | 1Cr18Ni9Ti | 304 | 304L | 1Cr18Ni12Mo2Ti | 316 | 316L |
溫度 Temperature |
-29~150(聚四氟乙烯PTFE)-29~200(加玻纖增強聚四氟乙烯PTFE+GLASS)-29~300(對位聚笨PPL) | ||||||
介質 Medium |
水蒸汽油品 Watersteam Oilgoods |
硝酸類NitricAcid | 強氧化介質 strongeyoxidablemedium |
醋酸類AceticAcid | 尿素類 |

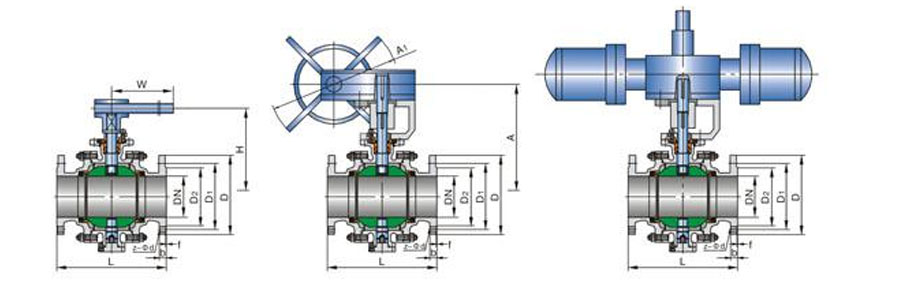

1.6MPa | DN | L | D | D1 | D2 | b | n-d | H0 | H1 | H2 |
凸面法蘭 RF Q947F 16C 16 16R |
32 | 140 | 135 | 100 | 78 | 16 | 4-18 | 30 | - | - |
40 | 165 | 145 | 110 | 85 | 16 | 4-18 | 32 | - | - | |
50 | 178 | 160 | 125 | 100 | 16 | 4-18 | 43 | - | - | |
65 | 190 | 180 | 145 | 120 | 18 | 4-18 | 70 | - | - | |
80 | 203 | 195 | 160 | 135 | 20 | 8-18 | 110 | - | - | |
100 | 305 | 215 | 180 | 155 | 20 | 8-18 | 150 | - | - | |
125 | 356 | 245 | 210 | 185 | 22 | 8-18 | 200 | - | - | |
150 | 394 | 280 | 240 | 210 | 24 | 8-23 | 230 | - | - | |
200 | 457 | 335 | 295 | 265 | 26 | 12-23 | 260 | - | - | |
250 | 533 | 405 | 355 | 320 | 30 | 12-25 | 283 | - | - | |
300 | 610 | 460 | 410 | 375 | 30 | 12-25 | 380 | - | - | |
350 | 686 | 520 | 470 | 435 | 34 | 16-25 | 425 | - | - | |
400 | 762 | 580 | 525 | 485 | 36 | 16-30 | 492 | - | - | |
500 | 914 | 705 | 650 | 608 | 44 | 20-34 | 555 | - | - | |
600 | 1067 | 840 | 770 | 718 | 48 | 20-41 | 675 | - | - | |
700 | 1245 | 910 | 940 | 788 | 50 | 24-41 | 850 | - | - |
2.5MPa | DN | L | D | D1 | D2 | b | n-d | H0 | H1 | H2 |
凸面法蘭 RF Q947F 25 25P 25R |
32 | 180 | 135 | 100 | 78 | 18 | 4-18 | 30 | - | - |
40 | 190 | 145 | 110 | 85 | 18 | 4-18 | 32 | - | - | |
50 | 216 | 160 | 125 | 100 | 20 | 4-18 | 43 | - | - | |
65 | 241 | 180 | 145 | 120 | 22 | 8-18 | 70 | - | - | |
80 | 283 | 195 | 160 | 135 | 22 | 8-18 | 110 | - | - | |
100 | 305 | 230 | 190 | 160 | 24 | 8-23 | 150 | - | - | |
125 | 381 | 270 | 220 | 188 | 28 | 8-25 | 200 | - | - | |
150 | 403 | 300 | 250 | 218 | 30 | 8-25 | 230 | - | - | |
200 | 502 | 360 | 310 | 278 | 34 | 12-25 | 260 | - | - | |
250 | 568 | 425 | 370 | 332 | 36 | 12-30 | 283 | - | - | |
300 | 648 | 485 | 430 | 390 | 40 | 16-30 | 380 | - | - | |
350 | 762 | 550 | 490 | 448 | 44 | 16-34 | 425 | - | - | |
400 | 838 | 610 | 550 | 505 | 48 | 16-34 | 492 | - | - | |
500 | 991 | 730 | 660 | 610 | 52 | 20-41 | 555 | - | - | |
600 | 1143 | 840 | 770 | 718 | 56 | 20-41 | 675 | - | - | |
700 | 1346 | 955 | 875 | 815 | 60 | 24-48 | 850 | - | - |
4.0MPa | DN | L | D | D1 | D2 | D6 | b | n-d | H0 | H1 | H2 |
凸凹法蘭 RF Q947F 40 40P 40R |
32 | 180 | 135 | 100 | 78 | 66 | 18 | 4-18 | 30 | - | - |
40 | 190 | 145 | 110 | 85 | 76 | 18 | 4-18 | 32 | - | - | |
50 | 216 | 160 | 125 | 100 | 88 | 20 | 4-18 | 43 | - | - | |
65 | 241 | 180 | 145 | 120 | 110 | 22 | 8-18 | 70 | - | - | |
80 | 283 | 195 | 160 | 135 | 121 | 22 | 8-18 | 110 | - | - | |
100 | 305 | 230 | 190 | 160 | 150 | 24 | 8-23 | 150 | - | - | |
125 | 381 | 270 | 220 | 188 | 176 | 28 | 8-25 | 200 | - | - | |
150 | 403 | 300 | 250 | 218 | 204 | 30 | 8-25 | 230 | - | - | |
200 | 502 | 375 | 320 | 282 | 260 | 38 | 12-30 | 260 | - | - | |
250 | 568 | 445 | 385 | 345 | 313 | 42 | 12-34 | 283 | - | - | |
300 | 648 | 510 | 450 | 408 | 364 | 46 | 16-34 | 380 | - | - | |
350 | 762 | 570 | 510 | 465 | 422 | 52 | 16-34 | 425 | - | - | |
400 | 838 | 655 | 585 | 535 | 474 | 58 | 16-41 | 492 | - | - | |
500 | 991 | 755 | 670 | 612 | 576 | 62 | 20-48 | 555 | - | - | |
600 | 1143 | 890 | 795 | 730 | 678 | 62 | 20-54 | 675 | - | - | |
700 | 1346 | 995 | 900 | 835 | 768 | 68 | 24-54 | 850 | - |
